学习使用echats因xAxis值过多,可以滚动的柱状图解决方案

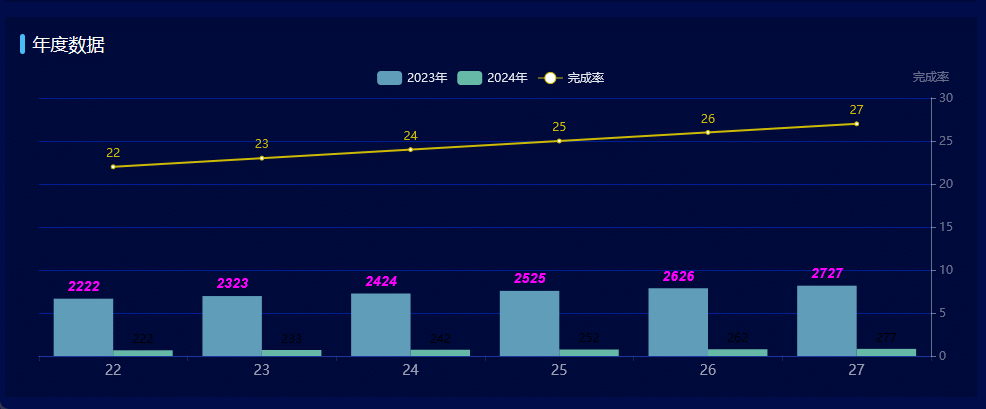

效果图

在这里插入图片描述

柱状图代码

function echarts() {


        // 基于准备好的dom,初始化echarts实例
        var myChart = echarts.init(document.getElementById('echart4'));

        let xaxisData = ['1', '2', '3', '4', '5', '6', '7', '8', '9', '10', '11', '12', '13', '14', '15', '16', '17', '18', '19', '20', '21', '22', '23', '24', '25', '26', '27', '28', '29', '30'];
        let option = {


            tooltip: {


                trigger: 'axis',
                axisPointer: {


                    lineStyle: {


                        color: '#57617B'
                    }
                }
            },
            "legend": {



                "data": [
                    {

      "name": "2023年"},
                    {

      "name": "2024年"},
                    {

      "name": "完成率"}
                ],
                "top": "0%",
                "textStyle": {


                    "color": "rgba(255,255,255,0.9)"//图例文字
                }
            },
            "label": {


                "show": true, //开启显示
                "position": 'top', //在右侧显示:right,
                "textStyle": {


                    "color": "rgba(255,255,255,0.9)"//图例文字
                }
            },
            "xAxis": [
                {


                    "type": "category",

                    //data: ['1月', '2月', '3月', '4月', '5月', '6月', '7月', '8月', '9月', '10月', '11月', '12月'],
                    data: xaxisData,
                    axisLine: {

      lineStyle: {

      color: "rgba(255,255,255,.1)"}},
                    axisLabel: {


                        textStyle: {

      color: "rgba(255,255,255,.6)", fontSize: '14',},
                    },

                },
            ],
            "yAxis": [
                {


                    "type": "value",
                    "name": "金额",
                    "min": 0,
                    "max": 10000,
                    "interval": 100,
                    "show": false,
                    "axisLabel": {


                        "show": false,//控制是否显示:true,false
                    },
                    axisLine: {

      lineStyle: {

      color: 'rgba(255,255,255,.4)'}},//左线色

                },
                {


                    "type": "value",
                    "name": "完成率",
                    "show": true,
                    "axisLabel": {


                        "show": true,//控制显示

                    },
                    axisLine: {

      lineStyle: {

      color: 'rgba(255,255,255,.4)'}},//右线色
                    splitLine: {

      show: true, lineStyle: {

      color: "#001e94"}},//x轴线
                },
            ],

            "grid": {


                "top": "10%",
                "right": "30",
                "bottom": "30",
                "left": "2%",
            },
            dataZoom: [

                {



                    xAxisIndex: 0, //这里是从X轴的0刻度开始

                    show: false, //是否显示滑动条,不影响使用

                    type: "inside", // 这个 dataZoom 组件是 inside 型 dataZoom 组件

                    startValue: 0, // 从头开始。

                    endValue: 12, // 一次性展示4个。

                },

            ],

            "series": [
                {


                    "name": "2023年",
                    "type": "bar",
                    // "data": [123437323, 123578456, 412345636, 912345676, 295532188, 645232535, 434534523, 666673453, 335665340, 334345326, 442323428, 124553222],
                    "data": [111, 222, 333, 444, 555, 666, 777, 888, 999, 1010, 1111, 1212, 1313, 1414, 1515, 1616, 1717, 1818, 1919, 2020, 2121, 2222, 2323, 2424, 2525, 2626, 2727, 2828, 2929, 3030],
                    "barWidth": "auto",
                    label: {


                        show: true, // 是否显示标签
                        position: 'top', // 标签位置,可选值为:top、bottom、center、inside(柱状图内部)、outside(柱状图外部)
                        textStyle: {


                            color: '#FF00FF', // 标签字体颜色
                            fontSize: 14, // 标签字体大小
                            fontWeight: 'bold', // 标签字体加粗
                            fontStyle: 'italic', // 标签字体斜体
                            fontFamily: 'Arial' // 标签字体
                        }
                    },
                    "itemStyle": {


                        "normal": {


                            "color": {


                                "type": "linear",
                                "x": 0,
                                "y": 0,
                                "x2": 0,
                                "y2": 1,
                                "colorStops": [
                                    {


                                        "offset": 0,
                                        "color": "#609db8"
                                    },

                                    {


                                        "offset": 1,
                                        "color": "#609db8"
                                    }
                                ],
                                "globalCoord": false
                            }
                        }
                    }
                },
                {


                    "name": "2024年",
                    "type": "bar",
                    "data": [
                        //  423332331, 789142442, 334354524, 135534536, 247448338, 845533436, 444545222, 209876532, 313226542, 665367567, 246854533, 156554458
                        11, 22, 33, 44, 55, 66, 77, 88, 99, 110, 111, 121, 133, 141, 155, 166, 171, 188, 199, 202, 212, 222, 233, 242, 252, 262, 277, 288, 299, 300
                    ],
                    "barWidth": "auto",

                    "itemStyle": {


                        "normal": {


                            "color": {


                                "type": "linear",
                                "x": 0,
                                "y": 0,
                                "x2": 0,
                                "y2": 1,
                                "colorStops": [
                                    {


                                        "offset": 0,
                                        "color": "#66b8a7"
                                    },
                                    {


                                        "offset": 1,
                                        "color": "#66b8a7"
                                    }
                                ],
                                "globalCoord": false
                            }
                        }
                    },
                    "barGap": "0"
                },
                {


                    "name": "完成率",
                    "type": "line",
                    "yAxisIndex": 1,

                    "data": [
                        //  100, 50, 80, 30, 90, 40, 70, 33, 100, 40, 80, 20
                        1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30
                    ],
                    lineStyle: {


                        normal: {


                            width: 2
                        },
                    },
                    "itemStyle": {


                        "normal": {


                            "color": "#cdba00",

                        }
                    },
                    "smooth": true
                }
            ]
        };


        // 使用刚指定的配置项和数据显示图表。

        /*        myChart.setOption(option);
                window.addEventListener("resize", function () {
                    myChart.resize();
                });*/

        console.log('111option.dataZoom===', option.dataZoom);
        console.log('111option.dataZoom[0].endValue===', option.dataZoom[0].endValue);
        console.log('111xaxisData.length===', xaxisData.length);


        timeInterval = setInterval(() => {



            console.log('222option.dataZoom===', option.dataZoom);
            console.log('222option.dataZoom[0].endValue===', option.dataZoom[0].endValue);
            console.log('222xaxisData.length===', xaxisData.length);

            if (option.dataZoom[0].endValue == xaxisData.length) {



                option.dataZoom[0].endValue = 5;

                option.dataZoom[0].startValue = 0;

            } else {



                option.dataZoom[0].endValue = option.dataZoom[0].endValue + 1;

                option.dataZoom[0].startValue = option.dataZoom[0].startValue + 1;

            }

            myChart.setOption(option);

        }, 2000);

    }

关键代码

setInterval定时器来实现的自右向左的滚动;

 timeInterval = setInterval(() => {



            console.log('222option.dataZoom===', option.dataZoom);
            console.log('222option.dataZoom[0].endValue===', option.dataZoom[0].endValue);
            console.log('222xaxisData.length===', xaxisData.length);

            if (option.dataZoom[0].endValue == xaxisData.length) {



                option.dataZoom[0].endValue = 5;

                option.dataZoom[0].startValue = 0;

            } else {



                option.dataZoom[0].endValue = option.dataZoom[0].endValue + 1;

                option.dataZoom[0].startValue = option.dataZoom[0].startValue + 1;

            }

            myChart.setOption(option);

        }, 2000);
dataZoom: [

                {



                    xAxisIndex: 0, //这里是从X轴的0刻度开始

                    show: false, //是否显示滑动条,不影响使用

                    type: "inside", // 这个 dataZoom 组件是 inside 型 dataZoom 组件

                    startValue: 0, // 从头开始。

                    endValue: 12, // 一次性展示4个。

                },

            ],
