线性表的单链表存储结构

Source

一、什么是单链表

每个结点只包含一个指针域的链表,称为单链表。

(一)单链表结点的数据结构

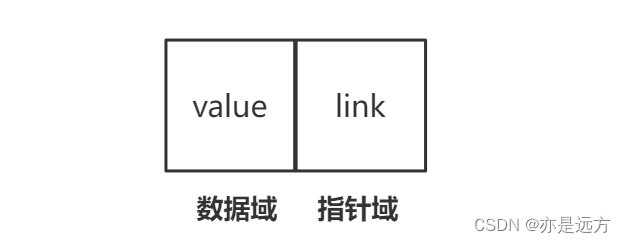

单链表结点的数据结构图请添加图片描述

// 结点结构体
typedef struct node
{


	ElemType value;
	struct node* link;

}Node;

(二)非空单链表数据结构

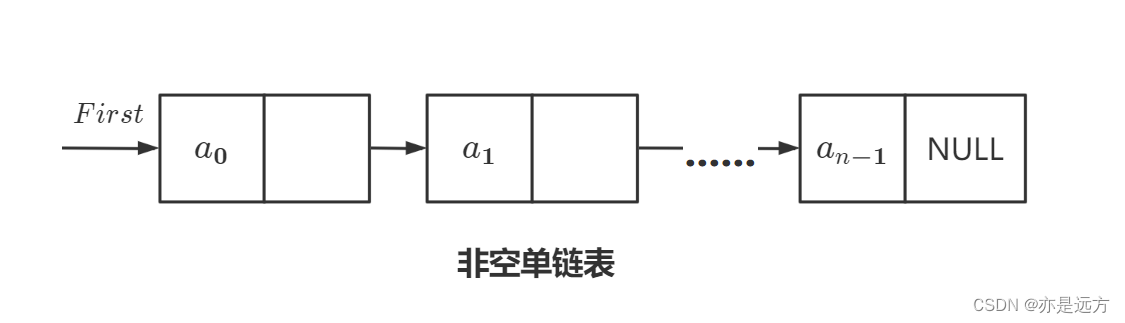

非空单链表的数据结构图
请添加图片描述

// 单链表结构体
typedef struct headerSingleList
{


	Node* head;
	int n;
}HeaderSingleList;

二、单链表的各个功能实现

(一)初始化

单链表的初始化:
(1)单链表的头指针赋值为 N U L L NULL NULL
(2)单链表的长度初始化为0

// 单链表的初始化
Status Init(HeaderSingleList* list)
{


	list->head = NULL;
	list->n = 0;
	return OK;
}

(二)根据索引查找元素

算法步骤:
(1)判断索引是否越界
(2)从头结点开始依次遍历单链表,直到找到目标结点
(3)将找到的值返回

void GetValue(HeaderSingleList* list, int i, int* value)
{


	printf("调用了 GetValue() 函数\n");
	Node* node = list->head;
	for (int j = 0; j < i; j++)
	{


		node = node->link;
	}
	*value = node->value;
}

(三)根据索引插入元素

单链表的插入是指将新元素 x x x 插入到 初始链表 a i a_i ai 结点的后面。
算法步骤:
(1)为元素 x x x 生成新的结点,由指针 n o d e node node 指向该结点,并将结点数据域 v a l u e value value 的值置为 x x x
(2)若传入的索引值 i = − 1 i = -1 i=1,则表示要将新元素插入到头结点
(3)若传入的索引值 i > − 1 i > -1 i>1,则表示要将新元素插入到非头结点,即新结点成为结点 a i a_i ai的直接后继结点, a i + 1 a_{i+1} ai+1的直接前驱结点。

// 单链表的插入
Status Insert(HeaderSingleList* list, int i, int value)
{


	// 如果插入的位置越界,则返回错误
	if (i < -1 || i > list->n - 1)
	{


		return Error;
	}
	Node* newNode = malloc(sizeof(Node));
	Node* before = list->head;
	for (int j = 0; j < i; j++)
	{


		before = before->link;
	}
	newNode->value = value;
	// 如果不是插入在头结点
	if (i > -1)
	{


		newNode->link = before->link;
		before->link = newNode;
	}
	// 如果插入在头结点
	else
	{


		newNode->link = list->head;
		list->head = newNode;
	}
	printf("调用了 Insert() 函数\n");
	list->n++;
}

(N)未完待续

三、全部代码

#include <stdio.h>
#define ElemType int
#define Error 0
#define OK 1
#define Overflow 2
#define Underflow 3
#define NotPresent 4
#define Duplicate 5
typedef int Status;

// 结点结构体
typedef struct node
{


	ElemType value;
	struct node* link;

}Node;

// 单链表结构体
typedef struct headerSingleList
{


	Node* head;
	int n;
}HeaderSingleList;


// 单链表的初始化
Status Init(HeaderSingleList* list)
{


	list->head = NULL;
	list->n = 0;
	return OK;
}

// 单链表的插入
Status Insert(HeaderSingleList* list, int i, int value)
{


	// 如果插入的位置越界,则返回错误
	if (i < -1 || i > list->n - 1)
	{


		return Error;
	}
	Node* newNode = malloc(sizeof(Node));
	Node* before = list->head;
	for (int j = 0; j < i; j++)
	{


		before = before->link;
	}
	newNode->value = value;
	// 如果不是插入在头结点
	if (i > -1)
	{


		newNode->link = before->link;
		before->link = newNode;
	}
	// 如果插入在头结点
	else
	{


		newNode->link = list->head;
		list->head = newNode;
	}
	printf("调用了 Insert() 函数\n");
	list->n++;
}

void Delete(HeaderSingleList* list, int i)
{


	if (list->n == 0)
	{


		return Error;
	}
	if (i < 0 || i >list->n - 1)
	{


		return Error;
	}
	Node* beforeNode = list->head;
	Node* deleteNode = NULL;
	// 如果删除头结点
	if (i == 0)
	{


		list->head = list->head->link;
	}
	// 如果删除的不是头结点
	else
	{


		// 找到要删除节点的前一个结点
		for (int j = 0; j < i-1; j++)
		{


			beforeNode = beforeNode->link;
		}
		// 此时的 beforNode 是所要删除结点的前一个结点
		deleteNode = beforeNode->link;		  // 要删除的结点deleteNode 为 beforNode 的下一个结点
		beforeNode->link = deleteNode->link;		  // 将要删除结点的前一个结点的 link 指向 要删除结点的下一个结点
		free(deleteNode);
	}
	printf("调用了 Delete(\%d) 函数\n", i);
	list->n--;
}

void GetValue(HeaderSingleList* list, int i, int* value)
{


	printf("调用了 GetValue() 函数\n");
	Node* node = list->head;
	for (int j = 0; j < i; j++)
	{


		node = node->link;
	}
	*value = node->value;
}

// 单链表的销毁
void Destory(HeaderSingleList* list)
{


	printf("调用了 Destory() 函数\n");
	Node* node = list->head;
	while (list->head)
	{


		node = node->link;
		free(list->head);
		list->head = node;
	}
}

void PrintAllValue(HeaderSingleList* list)
{



	Node* node = NULL;
	node = list->head;
	while (node)
	{


		printf("%d -> ", node->value);
		node = node->link;
	}
	printf("NULL\n\n");

}


int main()
{


	HeaderSingleList* list = malloc(sizeof(HeaderSingleList));
	Init(list);
	Insert(list, -1, 4);
	Insert(list, -1, 3);
	Insert(list, -1, 2);
	Insert(list, -1, 1);
	Insert(list, -1, 0);
	/*
	int x = 0;
	GetValue(list, 0, &x);
	printf("%d\n", x);
	*/
	PrintAllValue(list);
	Delete(list, 1);
	PrintAllValue(list);
	Destory(list);
	PrintAllValue(list);

}
